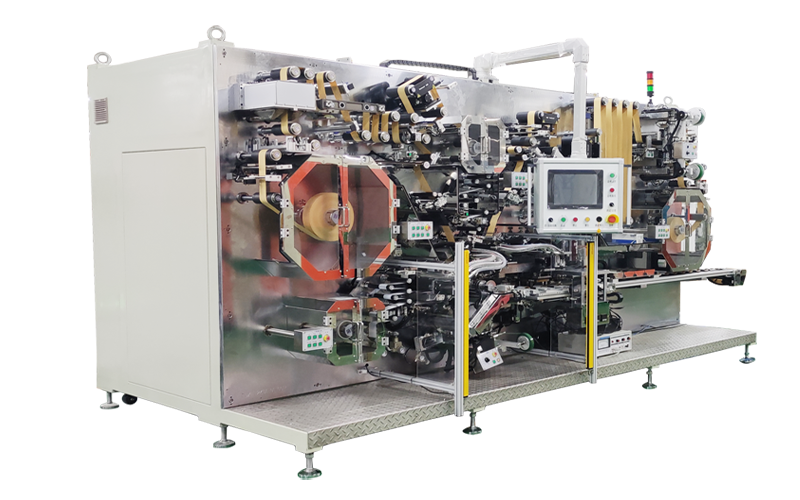

Mochini oa Tlhahiso ea Electrode

Kakaretso ea Tšebeletso

Batri ea cylindricalmochini oa ho etsa li-electrodeke lisebelisoa tsa bohlokoa ts'ebetsong ea tlhahiso ea betri ea lithium. Haholo-holo li sebelisetsoa ho sebetsana le li-coil tsa li-electrode tse koahetsoeng le tse omisitsoeng tse ntle le tse mpe ka letoto la mekhoa e nepahetseng ea ho sebetsa (ho kenyeletsoa mehato e kang ho phunyeletsa ha li-tab) hore e be likhoele tse tsoelang pele tse finyellang litlhoko tsa kopano ea libeteri tsa cylindrical. -ho etsa li-tab tse nepahetseng hantle, ho petsola, ho tlosa lerōle, ho khoasolla, le ho laola ka bohlale ho fana ka motheo o tiileng bakeng sa tlhahiso ea-ea ts'ebetso e phahameng{4}e phahameng{4}}e ts'epahalang e phahameng ea libeteri tsa cylindrical lithium, ho itokisetsa ts'ebetso e latelang ea ho tsoelipana kapa ho lamination. Boleng ba ho sebetsa (joalo ka taolo ea burr le ho nepahala ha dimensional) bo ama ka kotloloho polokeho le ts'ebetso ea betri.

Lisebelisoa tsa lisebelisoa

Mochini ona o sebelisoa haholo bakeng sa li-welding tabs tsa lithium-ion battery electrode;
1.Tabo le electrode li cheselitsoe, sebelisa sekhomaretsi se sireletsang ka pele le ka morao.
2.Mochini ona o sebelisa -mokhoa oa taolo oa Panasonic PLC o phahameng ho hlokomela boiketsetso ba ho theola li-coil, ho itšeha, ho tjheseletsa li-electrode, gluing ka pele le ka morao, le ho khutlisetsa morao, ho boloka basebetsi ba bangata, ho fokotsa haholo sekhahla sa ts'enyo ea motho ho elektrode nakong ea ts'ebetso ea tlhahiso, ka ts'ebetso e phahameng ea welding, le ho hlokomela lipase tse holimo le tse tlase (2 gluing);
3.3. Ts'ebeliso ea tjheseletso ea motlakase le theipi, e ka tsamaisoa hape ka bo eona hore e sebelisoe mochining o otlolohileng ka botlalo;
4.Mochini ona ke sesebelisoa se itirisang haholo tlhahisong ea li-electrode. Thepa ena, hammoho le li-electrode rolling tse tsoelang pele le ho hlobolisa li-electrode, li etsa tlhahiso e ikemetseng ea li-electrode.
5.Mochini ona o na le litheipi tsa sekhomaretsi tsa cathode le anode tse holimo le tse tlase, le sekhomaretsi sa li-tab tse ntle.
6. Litšitiso tsohle tsa motlakase nakong ea ts'ebetso ea mochini ona li na le ts'ebetso ea alamo.

Thepa Tse Amanang

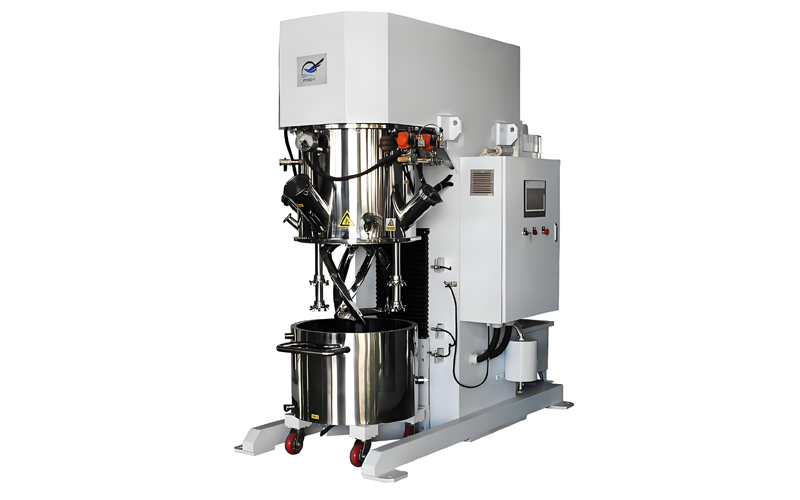

Motsoaki

Mochini oa ho Hlakola

Mochini oa Khalendara

Mochini oa Ente ea Mokelikeli

Mochini oa ho bokella

Mochini oa ho Seha Bakeng sa Battery

Thepalitekanyetso tsa tekheniki

Thepasebelisa tikoloho

1. Litekanyo: 2 040 (L) × 1 050 limilimithara (W) × 1689 limilimithara (H)

2. Boima ba 'mele: hoo e ka bang 1100 KG .

3. Phepelo ea matla : AC220V, mohato o le mong; ho feto-fetoha ha motlakase ho ka tlase ho ± 10%; matla: 5KVA.

4. Moea o hatelitsoeng: 0.4-0.7Mpa (4-7kgf / cm²), lebelo la ho phalla ha moea o mong le o mong o hatelitsoeng ke 180L / min, 'me tekanyo ea tšebeliso ke 50%.

5. Mocheso oa tikoloho: 20-35℃.

6. Mongobo o amanang: 5-55% HR.

7. Bohloeki ba tikoloho: eseng ka tlase ho Sehlopha sa 100,000, se se nang khase e senyang, metsi kapa khase e phatlohang sebakeng seo.

Lintho tse bonahalanglitlhaloso le litlhoko

1, Litlhaloso tsa lintho tse bonahalang:

Litlhoko tsa lintho tse bonahalang

1. Electrode ea betri: elektrode ea betri ea nako e telele, botenya ba aluminium foil 5 ~ 20um, mochini o hatellang o tsoelang pele o phunyeletsa ka bophara bo boletsoeng, phoso ea bophara ± 0.2mm, phoso ea electrode e ka tlase ho ± 1.0mm /1000mm, le reelel e phahameng ka 3mm, bophara ba 0-inch; ho nepahala ha reeling ± 1.0mm; ho roala ka nako e sa tsitsang phoso <± 0.5mm (ho roala, ho petsoha), ho tjheseletsa ho se nang letho ha tabo ka bophara ba bonyane 2mm ka bophara ho feta tab;
2. Tepi ea sekhomaretsi e kenngoa ka bophara ba eleketrode, phoso ea bophara ba tepi ea sekhomaretsi ke ± 0.2mm (thepa ea thepa), 'me ha ho bonolo ho e senya ha u bula tepi e khomarelang;
3. Phoso ea bophara ba "tab": ± 0.1mm, phoso ea "tab meander": 0.2mm/500mm (thepa ea thepa).
Lintlha:
(1) Electrode e ntle e cheselitsoe ka khoele e telele;
(2) Mokhoa oa ho lemoha ke teko e tsitsitseng;
( 3 ) Thepa ena e fana feela ka likarolo tse tobileng tsa mohlala oa ho amohela.

Tlhophiso ea likarolo tse kholo tsa lisebelisoa

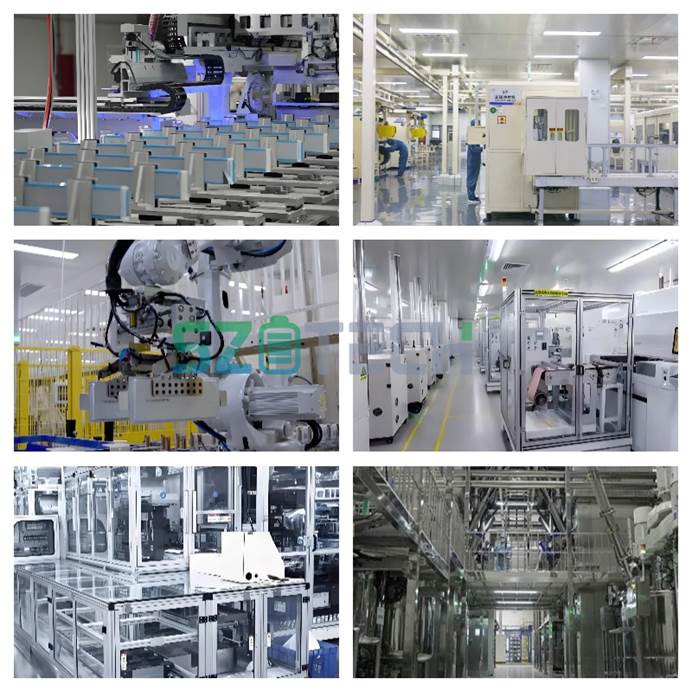

Linyeoe tsa Kopo
